Redisson

Redisson是Redis官方推荐的Java版的Redis客户端。它提供的功能非常多,也非常强大,此处我们只用它的分布式锁功能

Posted by 高明 on 2021-08-25

Redisson

redisson

redisson原理

高效分布式锁

当我们在设计分布式锁的时候,应该考虑分布式锁至少满足一些条件,同时考虑如何高效的设计分布式锁

  1. 互斥

    在分布式高并发的条件下,需要保证同一时刻只能有一个线程获得锁

  2. 防止死锁

    在分布式高并发的条件下,比如有个线程获得锁的同时,还没有来得及去释放锁,就因为系统故障或者其他原因使得它无法执行释放锁的命令,导致其他线程都无法获得锁,造成死锁,所以分布式非常有必要设置锁的有效时间,确保系统出现故障后,在一定时间内能够主动去释放锁,避免造成死锁的情况

  3. 性能

    对于访问量大的共享资源,需要考虑减少锁的等待时间,避免导致大量线程阻塞

    所以在锁的设计上,需要考虑

    1 锁的颗粒度要尽量小,比如你要通过锁来减库存,那这个锁的名称你可以设置成是商品的ID,而不是任取名称。这样这个锁只对当前商品有效,锁的颗粒度小

    2 锁的范围尽量小,比如只要锁2行代码就可以解决问题的,那就不要去锁10行代码了

  4. 重入

    我们知道ReentrantLock是可重入锁,那它的特点就是:同一个线程可以重复拿到同一个资源的锁。重入锁非常有利于资源的高效利用

Redisson原理分析

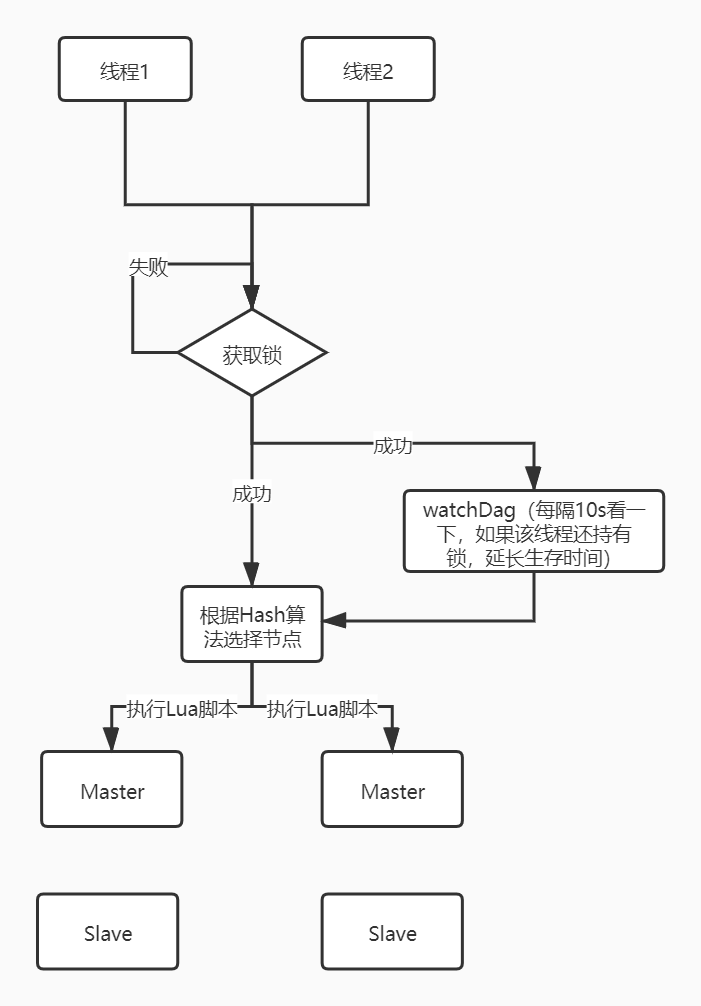

df5cbefc8462140b68aefcdf205c01f6

加锁机制

线程去获取锁,获取成功:执行Lua脚本,保存数据到redis数据库

线程去获取锁,获取失败:一直通过while循环尝试获取锁,获取成功后,执行Lua脚本,保存数据到redis数据库

watch dog

watch dog 自动延期机制,在一个分布式环境下,加入一个线程获得锁后,突然服务器宕机了,那么这个时候在一定时间后这个锁会自动释放,可以设置锁的有效时间(不设置默认30s),这样的目的主要是防止死锁的发生

但是在实际的开发中存在下面一种情况:

1
2
3
4
5
6
7
8
9
10
11
12
//设置锁1秒过去
redissonLock.lock("redisson", 1);
/**
* 业务逻辑需要咨询2秒
*/
redissonLock.release("redisson");

/**
* 线程1 进来获得锁后,线程一切正常并没有宕机,但它的业务逻辑需要执行2秒,这就会有个问题,在 线程1 执行1秒后,这个锁就自动过期了,
* 那么这个时候 线程2 进来了。那么就存在 线程1和线程2 同时在这段业务逻辑里执行代码,这当然是不合理的。
* 而且如果是这种情况,那么在解锁时系统会抛异常,因为解锁和加锁已经不是同一线程了,具体后面代码演示。
*/

所以这个时候,watchdog就出现了,它的作用就是线程1的业务还没有执行完,时间就过了,线程1还想持有锁的话,就会启动一个watch dog的后台线程,不断的延长锁key的生存时间

Note】正常这个watch dog线程是不启动的,还有就是这个watchdog启动后对整体性能也会有一定的影响,所以不建议开启watchdog

Lua脚本

如果业务逻辑复杂的话,通过封装在Lua脚本中发送给redis,而且redis是单线程的,这样就保证这段复杂业务逻辑执行的原子性

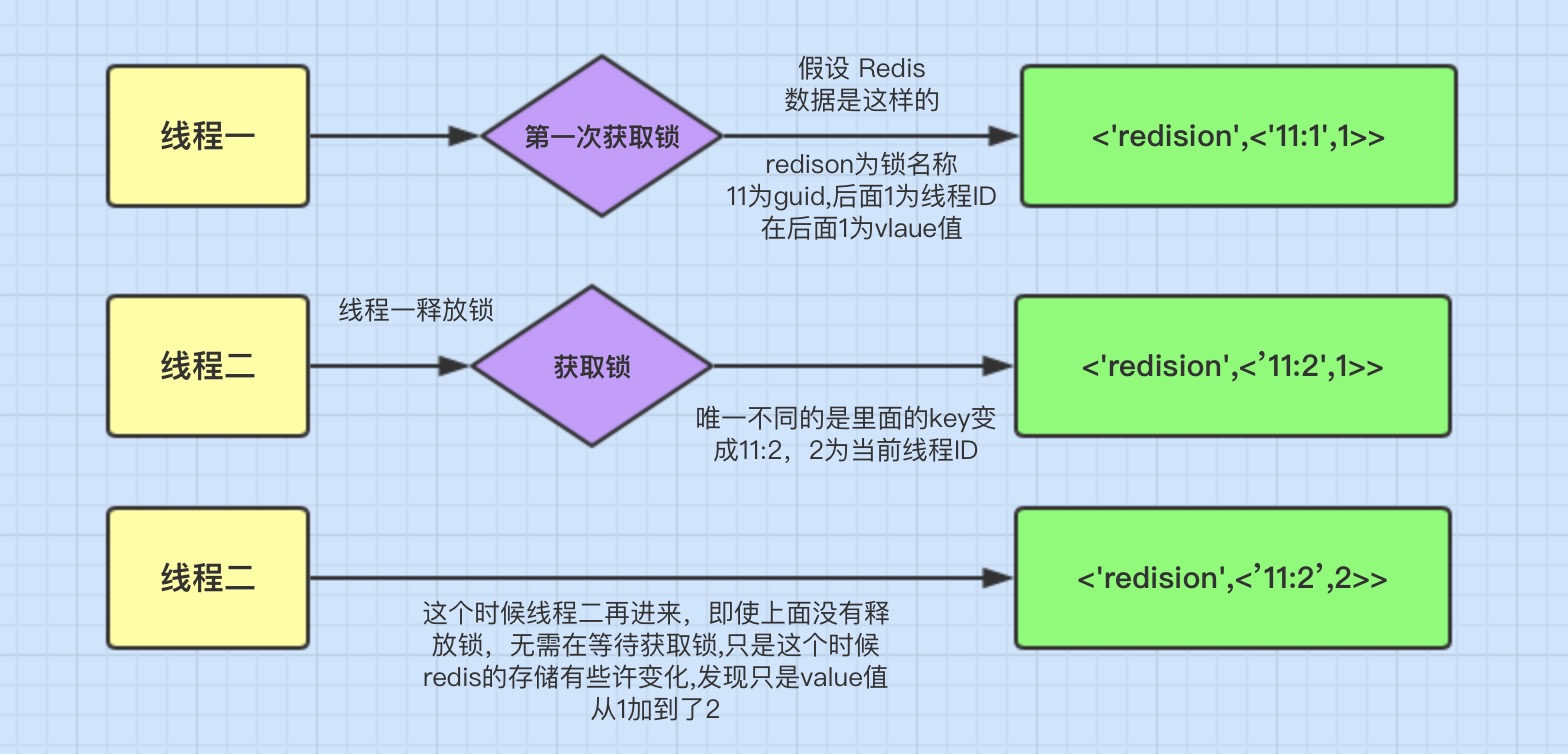

可重入加锁机制

redis存储锁的数据类型是Hash类型

Hash数据类型的key值包含了当前线程信息

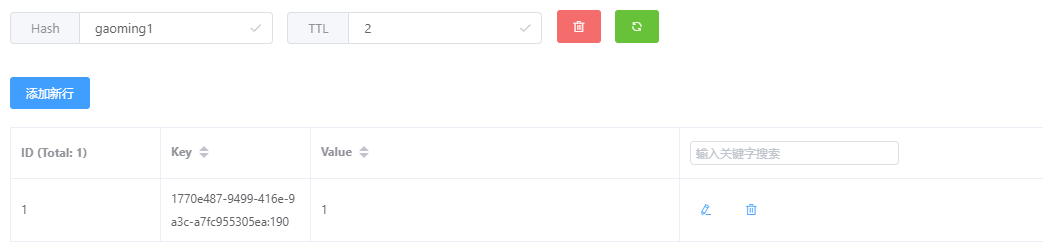

image-20210825162329277

这里表面数据类型是Hash类型,Hash类型相当于我们java<key,<key1,value>> 类型,这里hash key是为getLock的参数name

它的有效期还有2秒,我们再来看里们的key值为18c9d8bf-c83d-4976-80c5-c6980acc3f15:165它的组成是:

UUid + 当前线程的ID。后面的value是就和可重入加锁有关


Redis分布式锁会有个缺陷,就是在Redis哨兵模式下:

客户端1 对某个master节点写入了redisson锁,此时会异步复制给对应的 slave节点。但是这个过程中一旦发生 master节点宕机,主备切换,slave节点从变为了 master节点。

这时客户端2 来尝试加锁的时候,在新的master节点上也能加锁,此时就会导致多个客户端对同一个分布式锁完成了加锁。

这时系统在业务语义上一定会出现问题,导致各种脏数据的产生

缺陷在哨兵模式或者主从模式下,如果 master实例宕机的时候,可能导致多个客户端同时完成加锁

源码解析

getLock

1
2
3
@Autowired
private RedissonClient redissonClient;
RLock lock = redissonClient.getLock(objId + lockSuffix);
1
2
3
public RLock getLock(String name) {
return new RedissonLock(this.connectionManager.getCommandExecutor(), name);
}
1
2
3
4
5
6
7
public RedissonLock(CommandAsyncExecutor commandExecutor, String name) {
super(commandExecutor, name);
this.commandExecutor = commandExecutor;
this.id = commandExecutor.getConnectionManager().getId();
this.internalLockLeaseTime = commandExecutor.getConnectionManager().getCfg().getLockWatchdogTimeout();
this.entryName = this.id + ":" + name;
}

getLock方法接收name参数,返回一个RedissonLock对象,并对其进行初始化

tryLock

1
isSuccess = lock.tryLock(5, 5, TimeUnit.SECONDS);

tryLock接收三个参数,分别是waitTime(等待时间),leaseTime(锁失效时间)和TimeUnit(时间单位)

1
2
3
4
5
6
7
8
9
10
public boolean tryLock(long waitTime, long leaseTime, TimeUnit unit) throws InterruptedException {
long time = unit.toMillis(waitTime);
long current = System.currentTimeMillis();
final long threadId = Thread.currentThread().getId();
Long ttl = this.tryAcquire(leaseTime, unit, threadId); // 加锁
if (ttl == null) {
return true;
} else {
}
}
1
2
3
private Long tryAcquire(long leaseTime, TimeUnit unit, long threadId) {
return (Long)this.get(this.tryAcquireAsync(leaseTime, unit, threadId));
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
private <T> RFuture<Long> tryAcquireAsync(long leaseTime, TimeUnit unit, final long threadId) {
if (leaseTime != -1L) {
return this.tryLockInnerAsync(leaseTime, unit, threadId, RedisCommands.EVAL_LONG); //
} else {
RFuture<Long> ttlRemainingFuture = this.tryLockInnerAsync(this.commandExecutor.getConnectionManager().getCfg().getLockWatchdogTimeout(), TimeUnit.MILLISECONDS, threadId, RedisCommands.EVAL_LONG);
ttlRemainingFuture.addListener(new FutureListener<Long>() {
public void operationComplete(Future<Long> future) throws Exception {
if (future.isSuccess()) {
Long ttlRemaining = (Long)future.getNow();
if (ttlRemaining == null) {
RedissonLock.this.scheduleExpirationRenewal(threadId);
}

}
}
});
return ttlRemainingFuture;
}
}
1
2
3
4
<T> RFuture<T> tryLockInnerAsync(long leaseTime, TimeUnit unit, long threadId, RedisStrictCommand<T> command) {
this.internalLockLeaseTime = unit.toMillis(leaseTime);
return this.commandExecutor.evalWriteAsync(this.getName(), LongCodec.INSTANCE, command, "if (redis.call('exists', KEYS[1]) == 0) then redis.call('hset', KEYS[1], ARGV[2], 1); redis.call('pexpire', KEYS[1], ARGV[1]); return nil; end; if (redis.call('hexists', KEYS[1], ARGV[2]) == 1) then redis.call('hincrby', KEYS[1], ARGV[2], 1); redis.call('pexpire', KEYS[1], ARGV[1]); return nil; end; return redis.call('pttl', KEYS[1]);", Collections.singletonList(this.getName()), new Object[]{this.internalLockLeaseTime, this.getLockName(threadId)});
}
1
2
3
4
public <T, R> RFuture<R> evalWriteAsync(String key, Codec codec, RedisCommand<T> evalCommandType, String script, List<Object> keys, Object... params) {
NodeSource source = this.getNodeSource(key);
return this.evalAsync(source, false, codec, evalCommandType, script, keys, params);
}
1
2
3
protected <V, R> void async(boolean readOnlyMode, final NodeSource source, Codec codec, final RedisCommand<V> command, final Object[] params, RPromise<R> mainPromise, int attempt, final boolean ignoreRedirect, final RFuture<RedisConnection> connFuture) {
CommandAsyncService.this.sendCommand(details, connection);
}

常见问题

锁未被释放

1
2
3
4
5
try {
} catch (Exception e){
} finally {
lock.unlock(); // 记得释放锁
}

B的锁被A给释放了

基于Redis会出现,记得带一个value,标识不同的线程

基于Redisson的不会,因为加锁的记录的key带有threadId

数据库事务超时

锁过期了,业务还没执行完

同样是redis分布式锁过期,而业务逻辑没执行完的场景,不过,这里换一种思路想问题,redis锁的过期时间再弄长点不就解决了吗?

那还是有问题,我们可以在加锁的时候,手动调长redis锁的过期时间,可这个时间多长合适?业务逻辑的执行时间是不可控的,调的过长又会影响操作性能。

redisson会有一个watch dog,每个10s会查看一下

redis主从复制的坑

快速使用

1
2
3
4
5
<dependency>
<groupId>org.redisson</groupId>
<artifactId>redisson</artifactId>
<version>3.4.3</version>
</dependency>
1
2
3
4
5
6
7
8
redis.default.nodes[0]=127.0.0.1:7080
redis.default.nodes[1]=127.0.0.1:7081
redis.default.connectionTimeout=100
redis.default.soTimeout=100
redis.default.maxAttempts=2
redis.default.pool.maxTotal=100
redis.default.pool.maxIdle=20
redis.default.pool.minIdle=1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Configuration
@ComponentScan
public class RedissonConfig {
@Bean(name = "redissonRedisProperties")
@ConfigurationProperties("redis.default")
public RedisProperties defaultRedisProperties() {
return new RedisProperties();
}
@Bean(value = "redissonClient", destroyMethod = "shutdown")
RedissonClient redisson(@Qualifier("redissonRedisProperties") RedisProperties redisProperties) throws IOException {
Config config = new Config();
config.useClusterServers()
.setMasterConnectionPoolSize(redisProperties.getMaxIdle())
.setMasterConnectionMinimumIdleSize(redisProperties.getMinIdle())
.setConnectTimeout(redisProperties.getConnectionTimeout())
.addNodeAddress(redisProperties.getNodes().stream().map(n -> "redis://" + n).toArray(String[]::new));
return Redisson.create(config);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@Service
@Slf4j
public class DpaBaseService {

@Autowired
private RedissonClient redissonClient;

public RLock getLock(Object objId, String lockSuffix) {
RLock lock = redissonClient.getLock(objId + lockSuffix);
boolean isSuccess;
try {
isSuccess = lock.tryLock(5, 5, TimeUnit.SECONDS);
log.info(System.currentTimeMillis() + "isSuccess: " + isSuccess + "---getLock----" + Thread.currentThread().getName());
} catch (InterruptedException e) {
log.error("rLock.tryLock.e", e);
isSuccess = false;
log.info(System.currentTimeMillis() + "---getLock false----" + Thread.currentThread().getName());
Thread.currentThread().interrupt();
}
Assert.isTrue(isSuccess, "资源正在被其他人编辑,请稍后重试");
return lock;
}
}
1
2
3
4
5
6
7
RLock lock = dpaBaseService.getLock(blackDpaDto.getId(), Constants.BLACK_DPA_LOCK_PREFIX);
try {
return blackDpaServiceDelegate.updateBlackDpa(operator, blackDpaDto);
} finally {
log.info(System.currentTimeMillis() + "---update black dpa unLock----");
lock.unlock();
}
